▶3 Inch Pod Lights
Features:

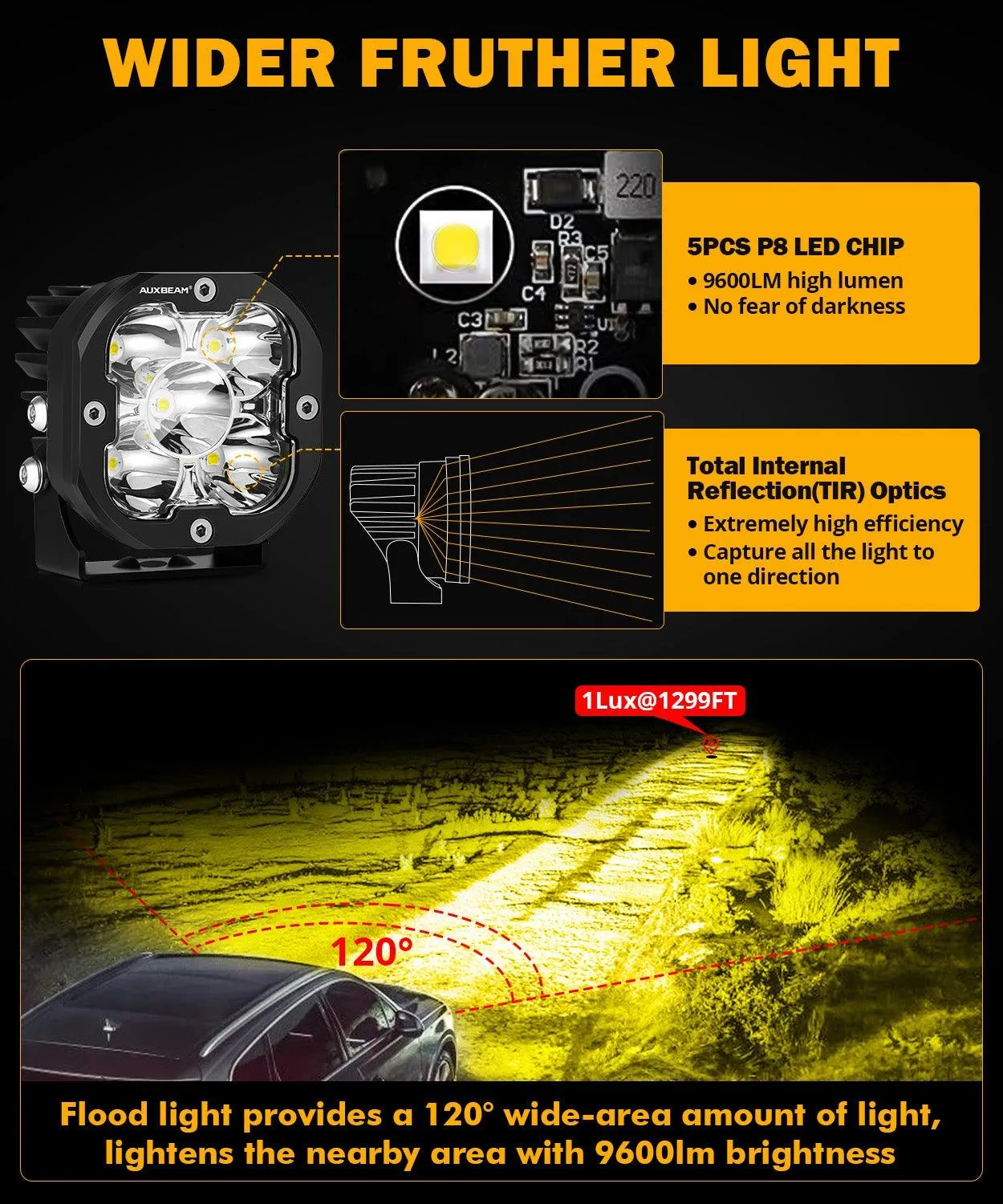

Unique Molded Ultra-Wide Beam Throw: Combined with broader and deeper reflectors, utilizing anti-glare optics design, X-Pro Series 120° flood beam off road light, highly concentrates all beams of light, eliminating any diffusion, dispersion and glare, providing more precise beams and longer-lasting clarity than PMMA, resulting in optimal wide-range illumination.

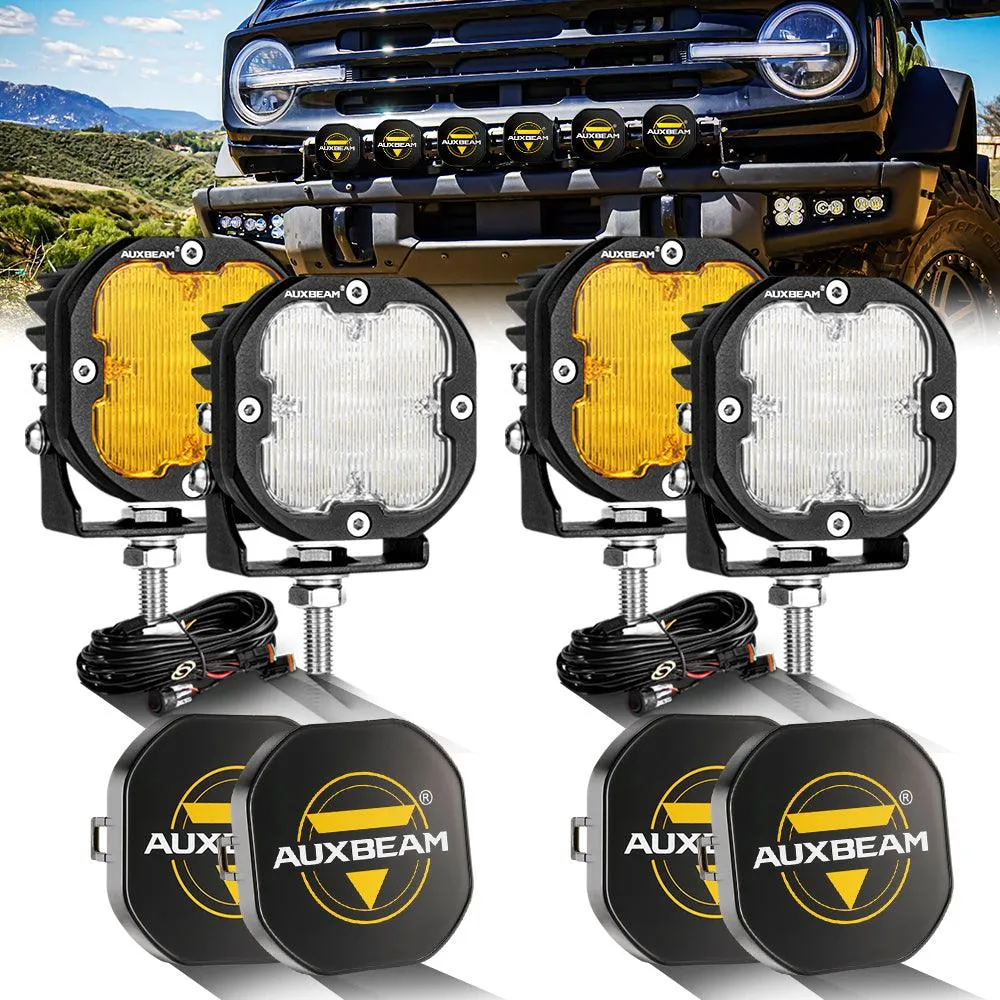

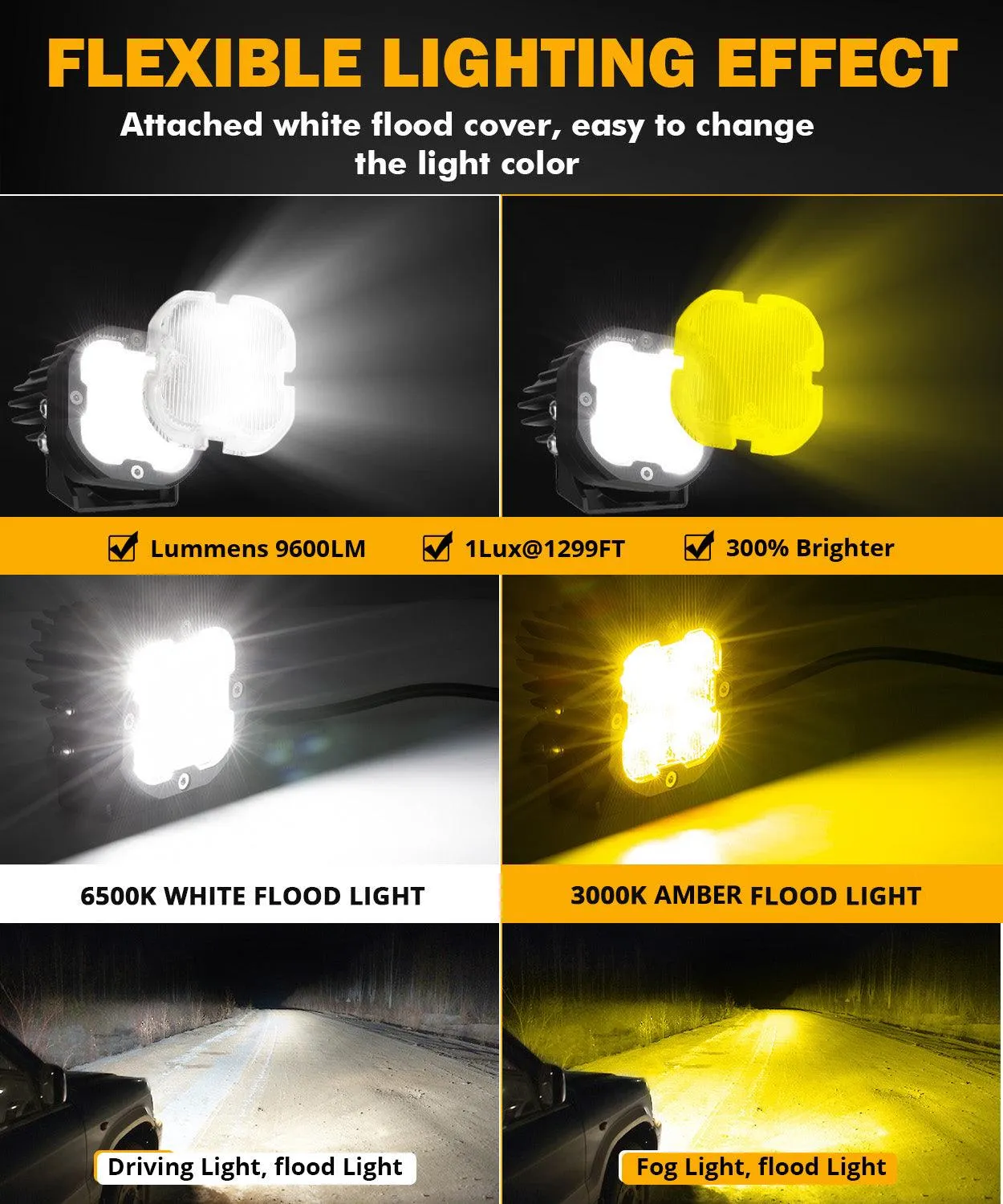

Powerful & Efficient Visual Brightness: Equipped with 5 automotive-grade P8 LEDs (per light), this 3 inch light pod outputs 80W of power, delivering a powerful luminous flux of 9600LM and an illumination distance of 1Lux@509feet, optimizing efficiency and durability. 3 inch off road lights also come with interchangeable amber and white light covers, allowing you to enjoy the versatility of multiple off-road lights at the price of a single set.

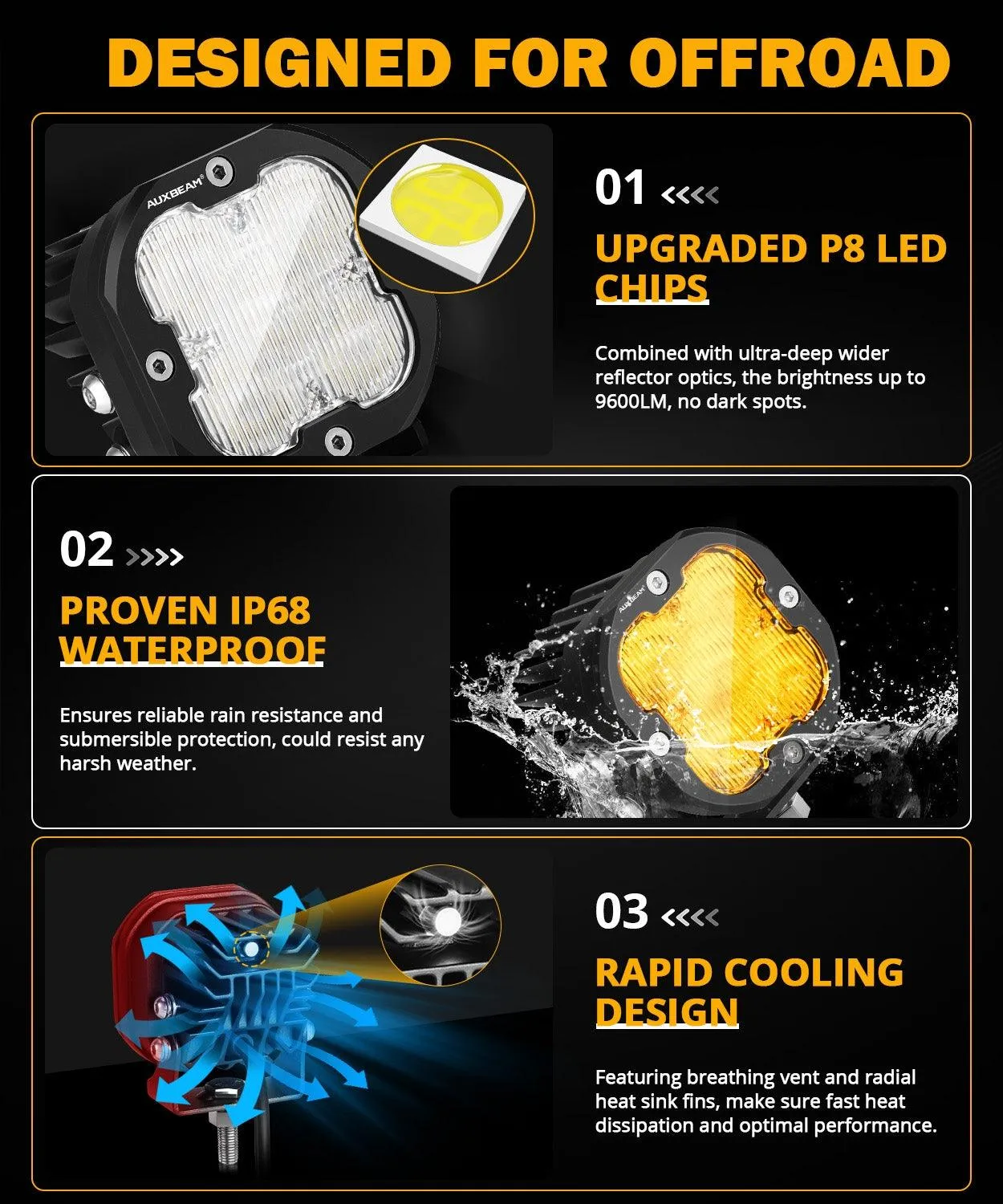

High Strength Heavy-Duty Engineering: This amber/white ditch light features a hardened PC lens and an aluminum alloy housing, offering scratch & corrosion resistance, and efficient heat dissipation. Built-in anti-flicker and EMC technology provide a stable lighting experience and better protect the internal electronic components in lighting and external objects like a radio receiver, while the 180° adjustable bracket offers flexible installation options.
IP68 Certified Triple Wateroroof: Special design of a breathing hole on the back automatically dissipates fog. X-Pro Series amber fog lights undergo aging, waterproof, dustproof, and shockproof tests before leaving the factory. Auxbeam adheres to 100% rigorous quality inspection rather than sample inspection to ensure its outstanding performance against moisture or condensation.

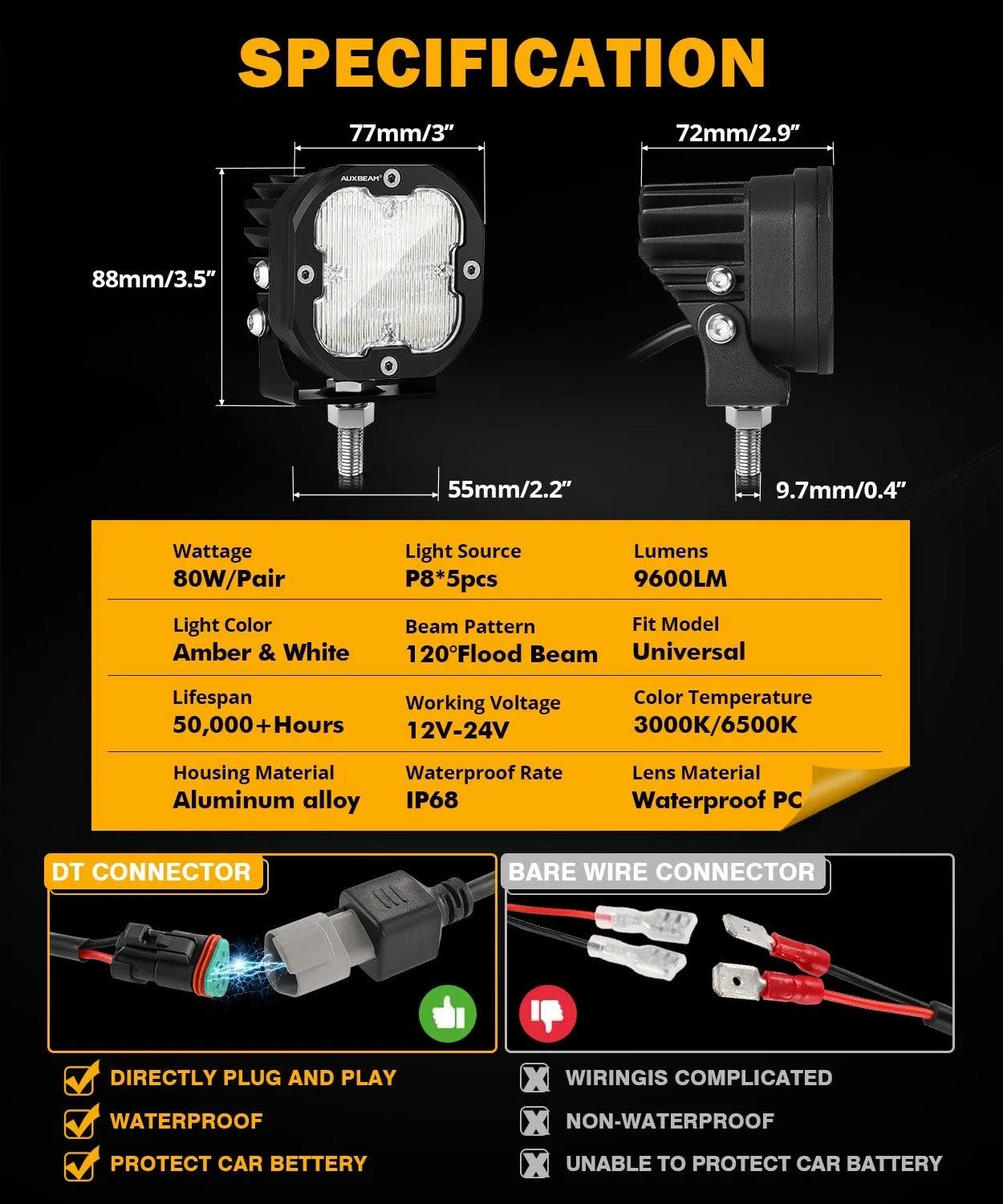

Specification:
Size: 3inch
Quantity: 2Pcs
Power/Set: 80W
Total Lumens: 9600LM
Beam Degree：120° Flood/Wide Beam
Lamp Beads Model(Each): P8*5 PCS
Lighting Distance:1 LUX@155M
Housing Material: Aluminum Alloy
Lens Material: PC
Beam Pattern: Amber Flood/White Flood
Light Color: Amber Light White Cover
Color Temperature: 6500K White/3000K Amber
With EMC/EMI：Yes
Fit Model: Universal（M10 screw mounting）
Life Time: 50000 hours
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

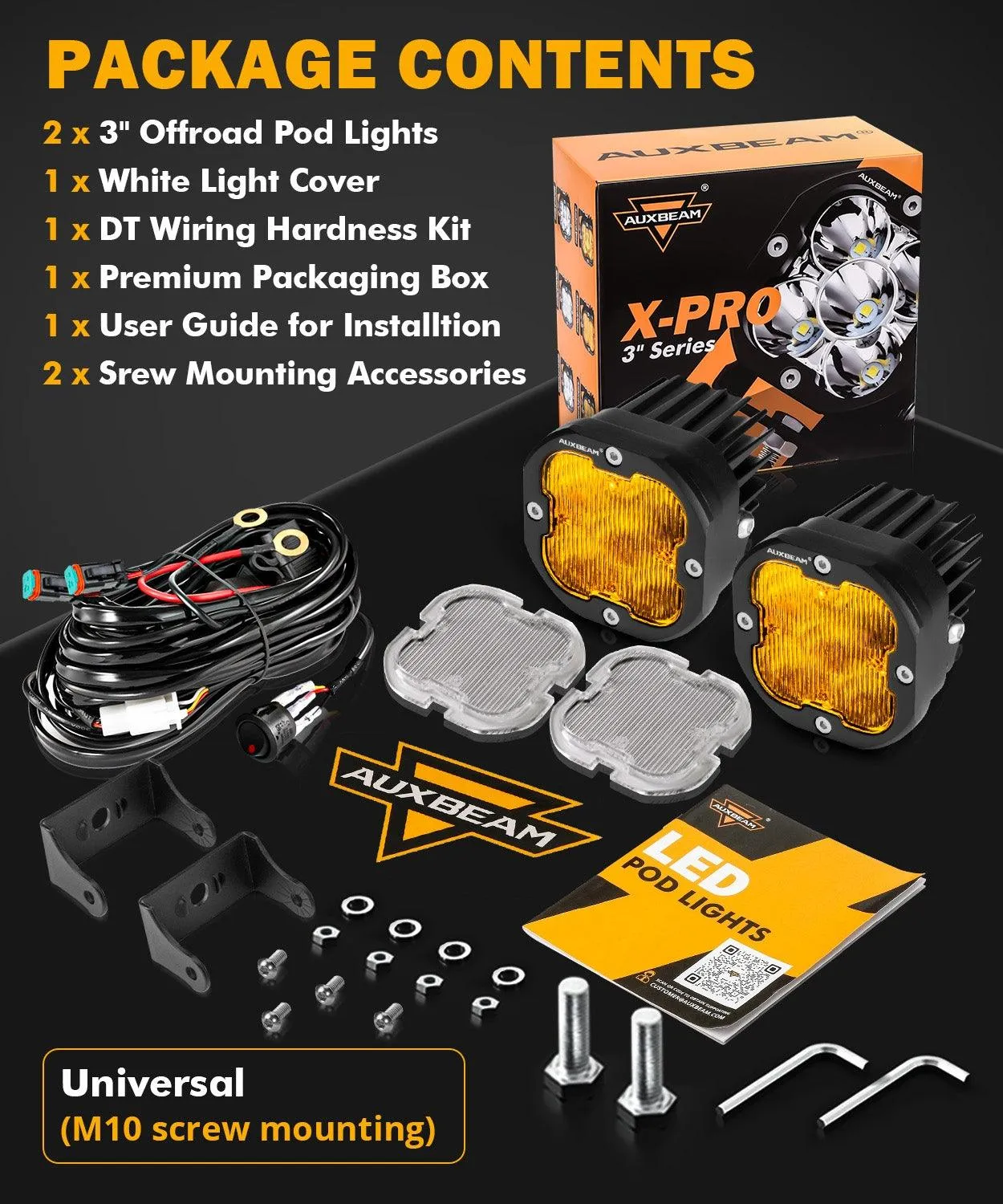

Packing Included:
2 X LED Driving Light（With DT Plug）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

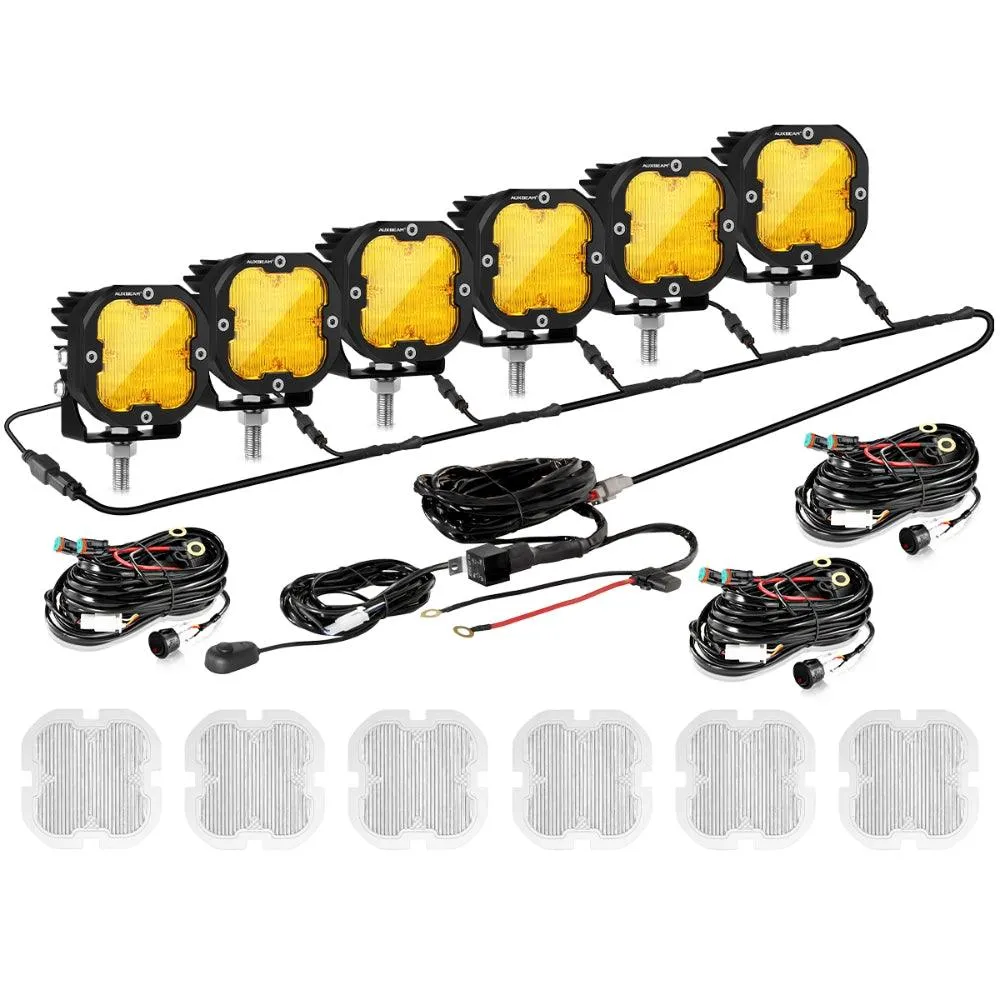

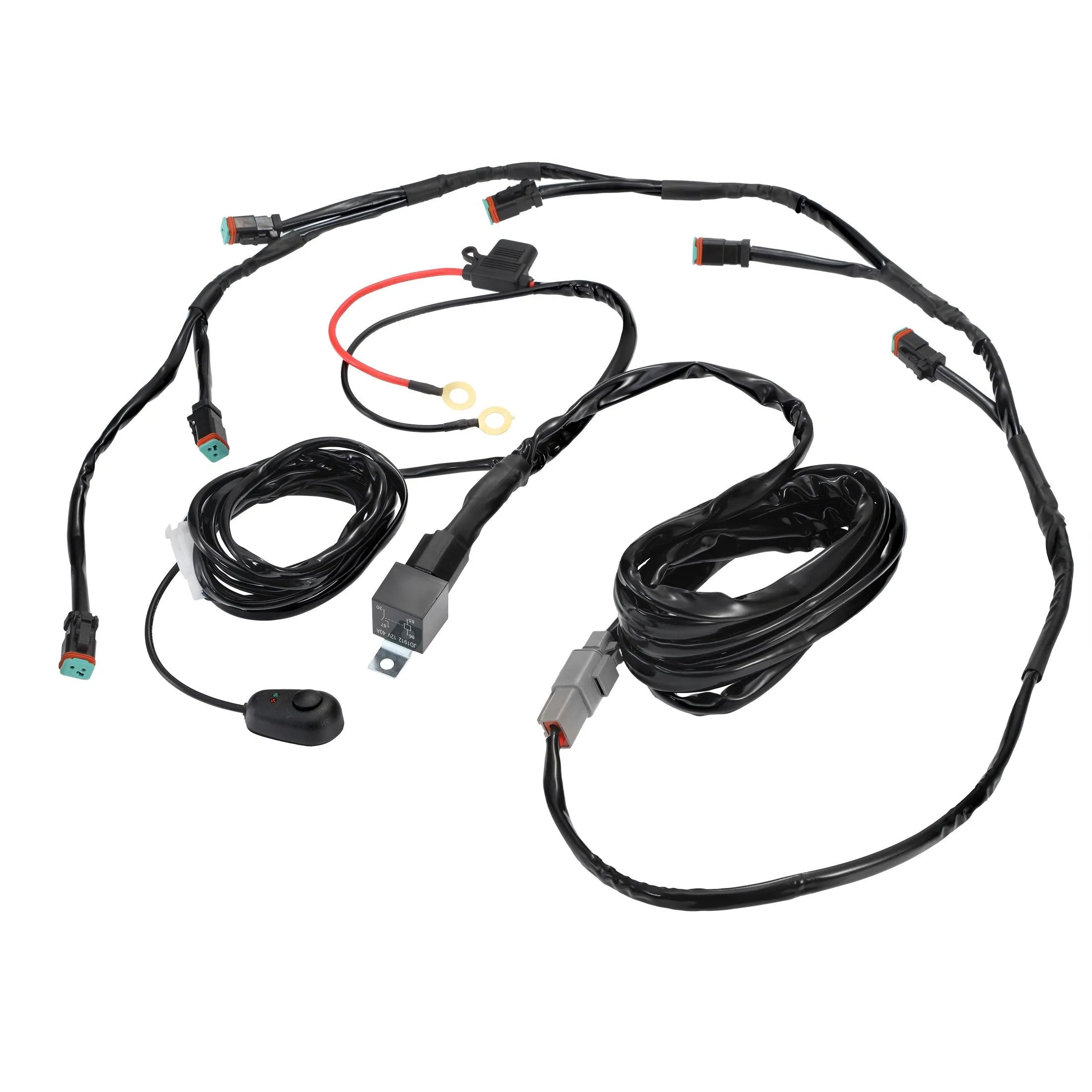

▶ 6-Pod Power Harness
Recommend Fit for Our Pod Light SKU:

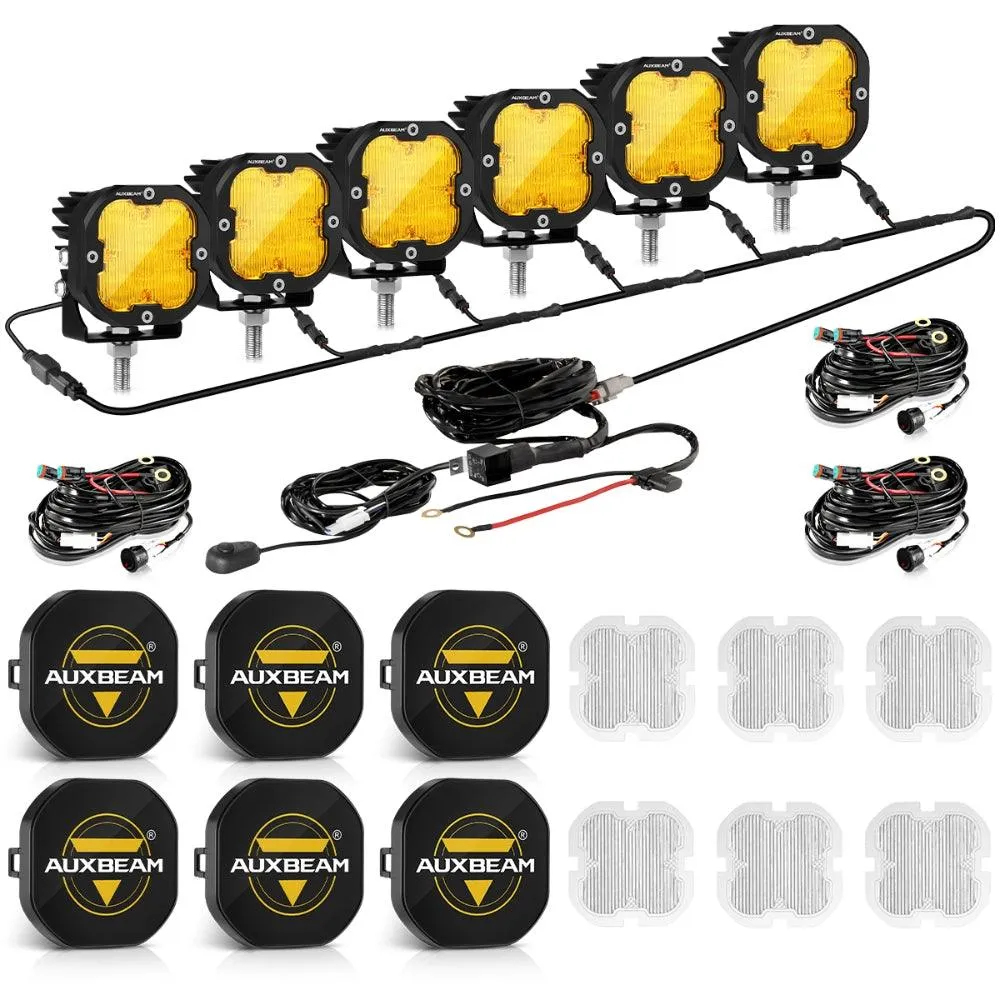

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000670/ZD000671/ZD000749/ZD000750/ZD000668/ZD000669
ZD000676/ZD000817/ZD000818/ZD000819/ZD000683/ZD000618
ZD000658/ZD000659/ZD000672/ZD000706/ZD000711/ZD000692

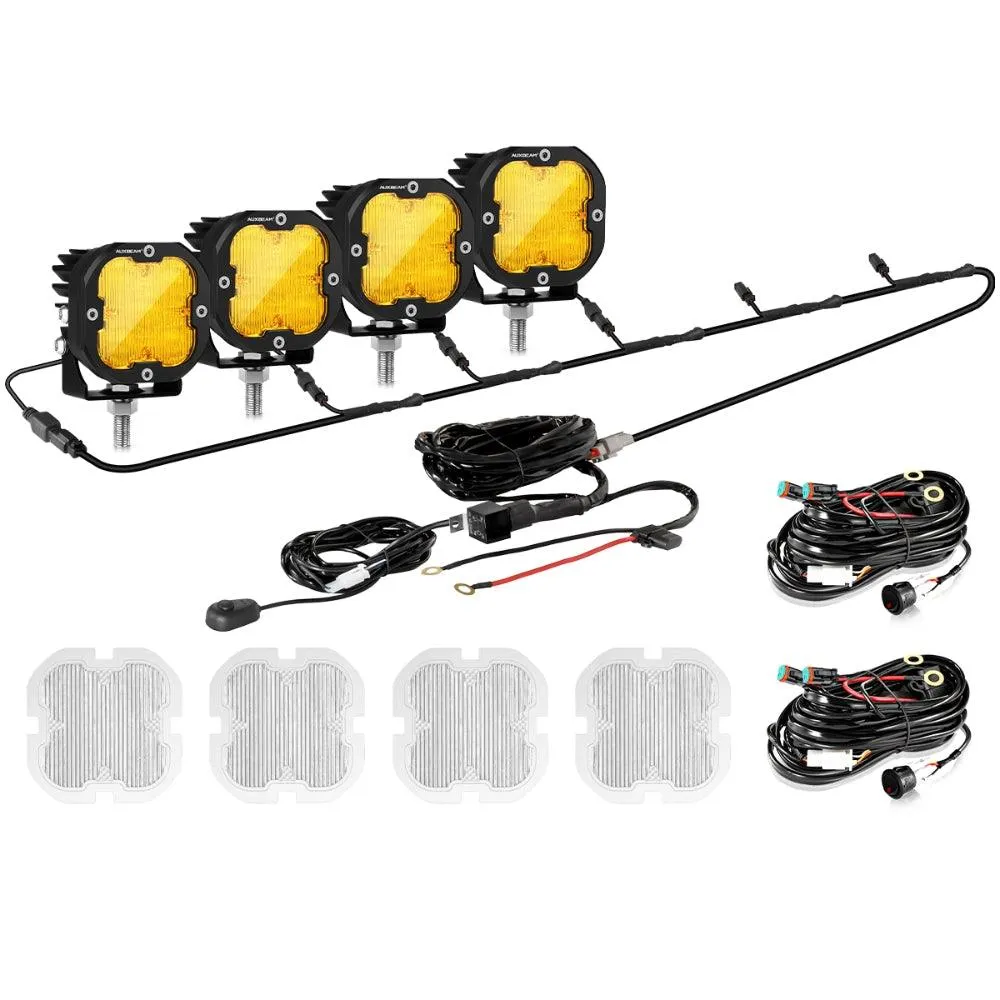

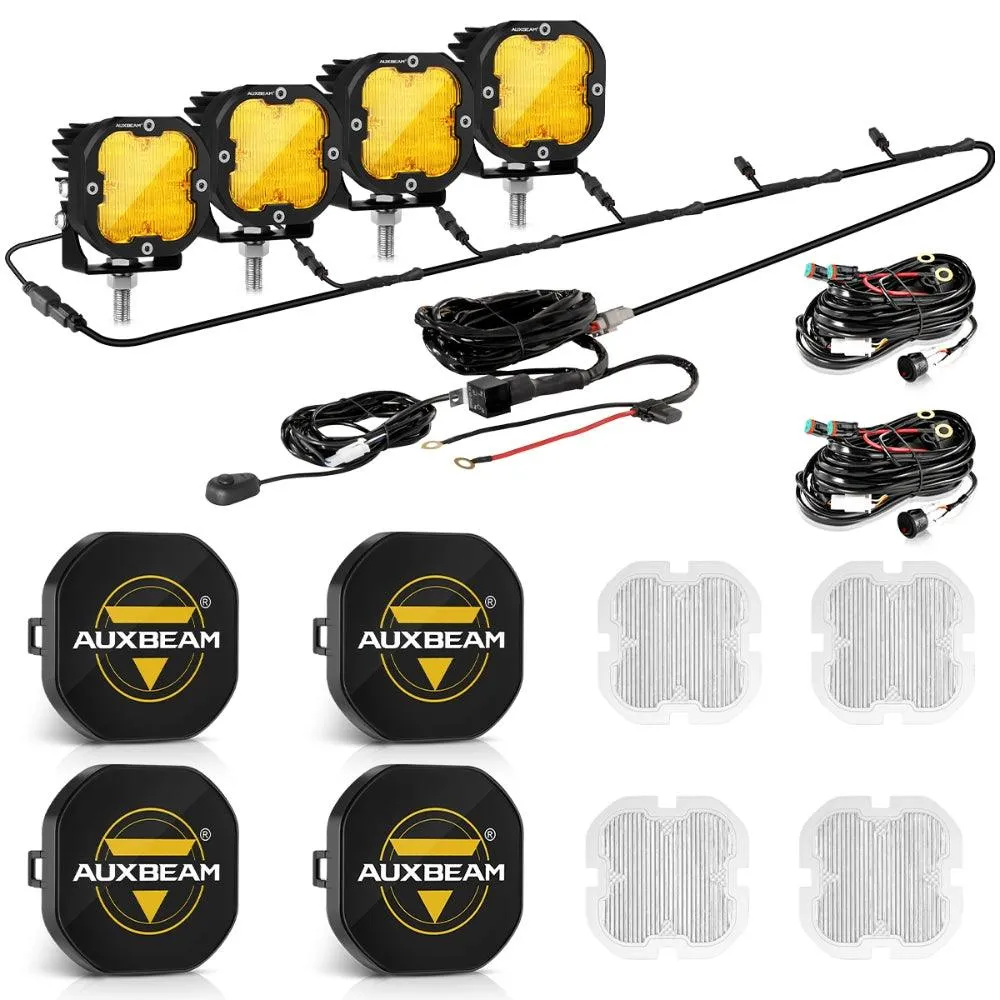

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/77721738
3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675
Features:
Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.
Specification:
Connect Number Light：Max 6 Pods
Switch Button: Single Mode（ON/OFF Main Light）

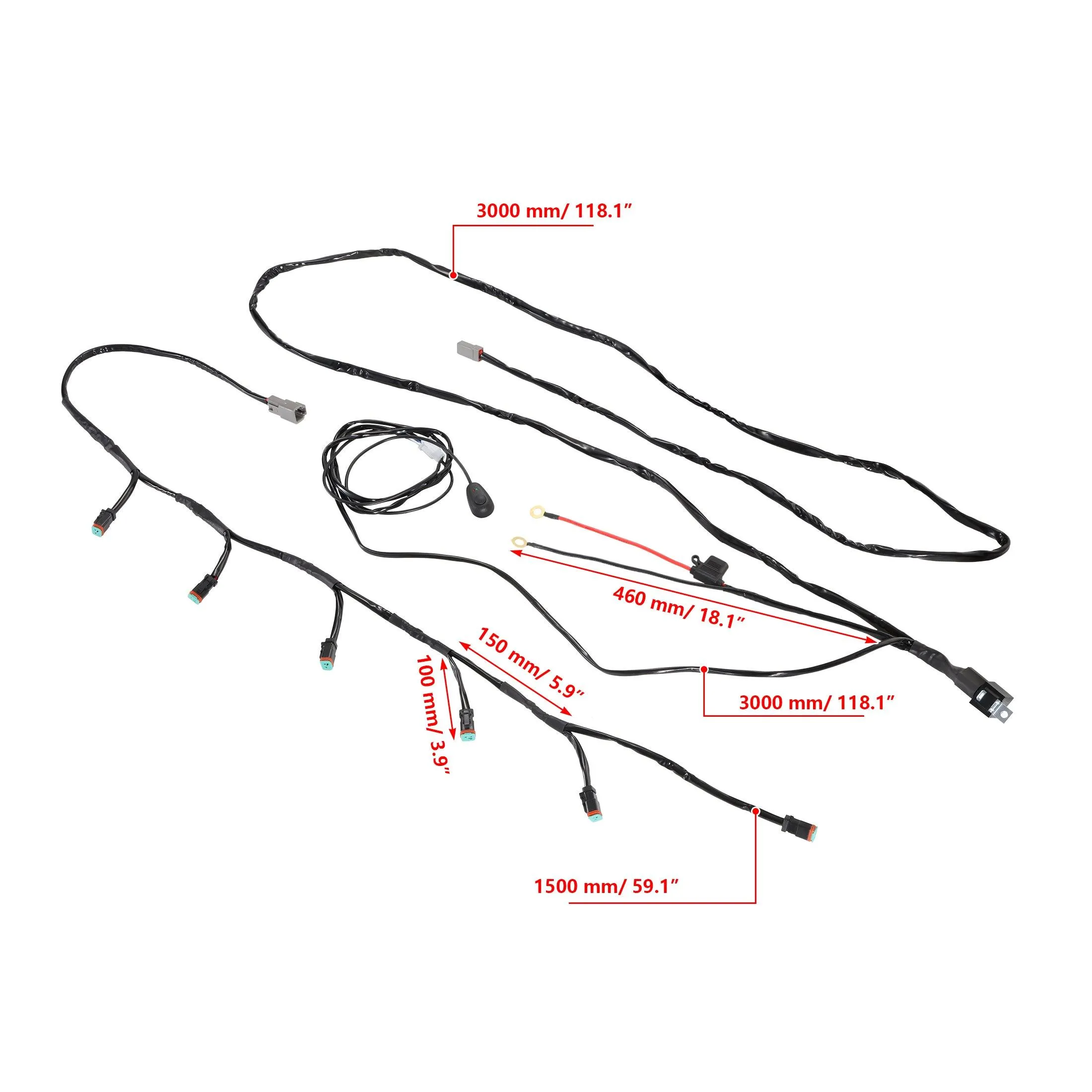

Wire Length: 3M Extension Cord 1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W（current 40A）
Fuse Size: 40A
Applicable: LED Driving Light Pods Single Mode Only Main Light (without Day Running Lights or Turn Signal Lights)
Packing Included:
1 x 6-Pod Power Harness (Pod lights not included)
